- Manufacturer:
- Model:SKD-B100
- SKU:
- Available:Pre-Order0

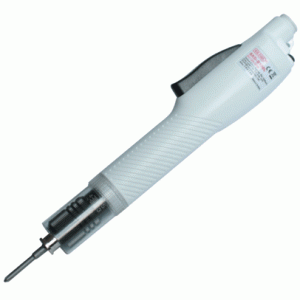

Electromechanical mini screwdrivers SKD-B100 series Kilews
The world's first electromechanical mini-screwdriver with a brushless DC motor and 12V power supply
Properties:
- A highly reliable brushless electric motor is used that does not require repair.
- Small dimensions, weight and noise level, modern design providing a high level of comfort and ease of use.
- The world's first electromechanical screwdriver with the smallest dimensions and the lowest weight.
- New system for changing the direction of rotation of the spindle.
- The low torque range ensures quality assembly of precision devices such as watches and hard drives.
- Rotation speed 1000 or 700 rpm min is installed on the power supply.
Parameters of SKD-B103L (C) / ESD Electromechanical Screwdriver
|
Parameter |
Meaning |
|
|
Supply voltage, V |
High revs |
nine |
|
Low revs |
12 |
|
|
Power consumption, W |
12 |
|
|
Torque |
kgf × cm |
0.5 - 3.5 |
|
N × m |
0.05 - 0.34 |
|
|
Torque repeatability,% |
5 |
|
|
Torque adjustment |
Stepping |
|
|
Rotation speed, rev. min ± 10% |
High |
1000 |
|
Low |
700 |
|
|
Screw diameter, mm |
Small screw |
1.0 - 2.3 |
|
Screw, self-tapping screw |
1.0 - 2.0 |
|
|
Weight, g |
170 |
|
|
Length, mm |
165 |
|
|
Antistatic execution |
Yes |
|
|
CE Compliance |
Yes |
|
|
RoHS Compliance |
Yes |
|
|
Screwdriver insert type (bits) |
C |
|
